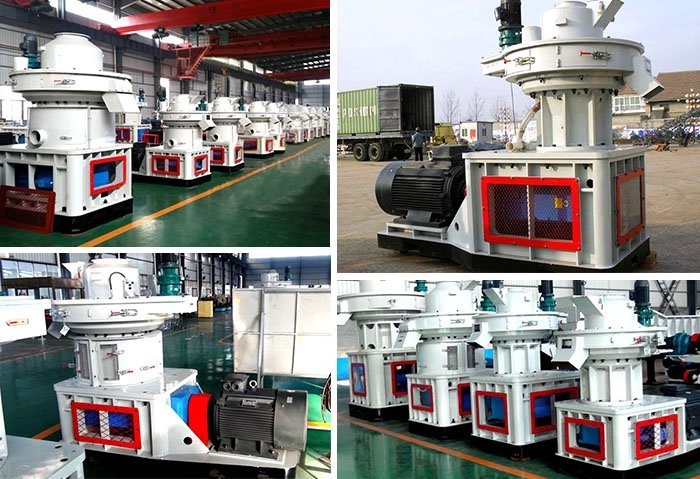

Bagasse Pellet Mill

Bagasse Pellet Mill

Voltage: 380V, 50HZ

Certificate: CE,ISO9001

Design: Rotary Die, Flat Die

Pellet Size: The length and diameter of pellets are adjustable

Online Order Free Consult


Bagasse is the residue after sugar making process. Every day, sugar factory will produce a large amount of sugar cane bagasse. If treated as waste, it will not only cause a waste of resources, but also pollute the environment. However, the emergence of bagasse pellet mill can take full advantages of the waste.

Bagasse pellet machine is also called sugar cane bagasse pelletizing machine, which can press bagasse into pellet, which can be used as biomass fuel for combustion. Bagasse particles produced by bagasse pellet machine is the good sources of raw materials in fuel power plant and steam boiler. Bagasse pellet is not only cheap, but also can generate huge heat.

Applied Materials of Bagasse Pellet Mill:

Bagasse, sawdust, rice husk, cotton stalk, corn stalk, peanut shell, cotton seed hulls, grass, weeds as well as other crop straw and agricultural waste.

Comparison Between Bagasse and Bagasse Pellets

Material Moisture(%, Dry Basis) Approx. Ash Content(%) Calorific Value(kcal/kg)
Bagasse 18 4 4.3
Bagasse Pellets 12 4.5% 4600

raw materials

Bagasse Pellet Making Process:

1. The materials are directly crushed by the crushing machine; the finished materials can be suppressed to particles if the length and moisture content are controlled within the prescribed limits.
2. The materials are transferred to the pellet mill by the belt conveyer, or uniformly delivered to the pellet machine by human labor, and then into the feed inlet, finally to suppress them into particles.

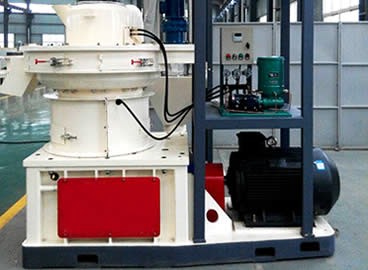

pellet mill

From raw materials to the whole process, it can be divided into: material recovery - crushing - conveyor - particle pressing - molding - output - cooling - transport - send to small power plant boiler or residents.

Characteristics of Bagasse Pellet Mill:

1. High yield, low power consumption. The yield for per hour is 800 kg -1500 kg, power consumption is only 30KW- 55kW.
2. Strong adaptability of raw materials. It is applicable for processing various raw materials, which can press materials with general moisture of 8-20%.
3. The pressing wheels have automatic adjustment function. It uses bidirectional rotation principle of bearings to adjust the pressure angle, which can make the material cannot be extruded into the group. So that it is not easy to cause the stuck phenomenon of the equipment, so as to ensure the stability of particles.
4. Convenient operation, automatic feeding, thus reducing labor density, and thereby reducing the production cost. It needs only 2-3 people, which is the high quality choice of for enterprises.

When it comes to China bagasse pellet mill, Fote Machinery is a professional bagasse pellet mill manufacturer, which has skilled and mature production experience of pellet mill. In addition to bagasse pellet mill, we also have wood pellet mill, peanut shell pellet mill, coconut shell pellet mill and other related equipment. We are sincerely looking forward to your enquiry!
